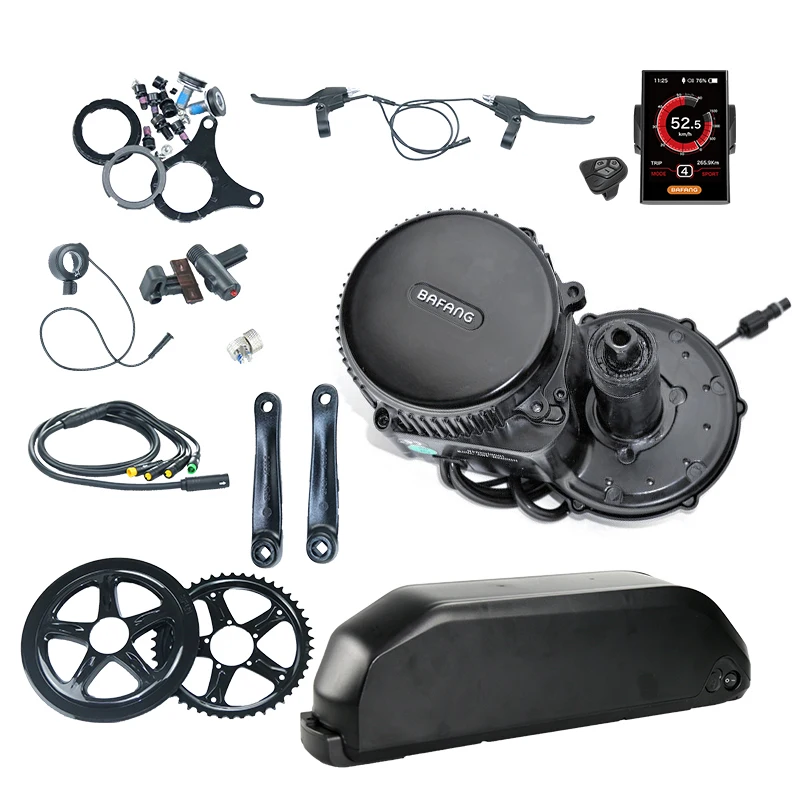

Bafang 8Fun BBS02 Electric Bike Kit 48V 500W E-bike Kit Electric Motor Mid Drive with 48V/52V 13AH/16AH/17.5AH Ebike Battery

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

Voltage 48V/52V

Power 48V500W Bafang Mid Drive Motor

Application Ebike/e bike/electric bike/electric bicycle/mountain bike

Item Name Electric bike kit/e bike kit/ebike kit/ 8fun motor kit

Chain Wheel Size 46T (44T/48T/52T is optional)

Bottom Bracket 68mm

Reduction Ratio 1:21.9

Max. Torque 160 N.m

Title Bafang BBS02 48V500W with Battery

Position Middle Crank

Model BBS02B

Battery Type Li-ion Battery

Charger Not including

Capacity 1 48V 13AH lithium battery

Capacity 2 48V 16AH lithium battery

Capacity 3 48V 17.5AH lithium battery

Capacity 4 52V 13AH lithium battery

Capacity 5 52V 16AH lithium battery

Capacity 6 52V 17.5AH lithium battery

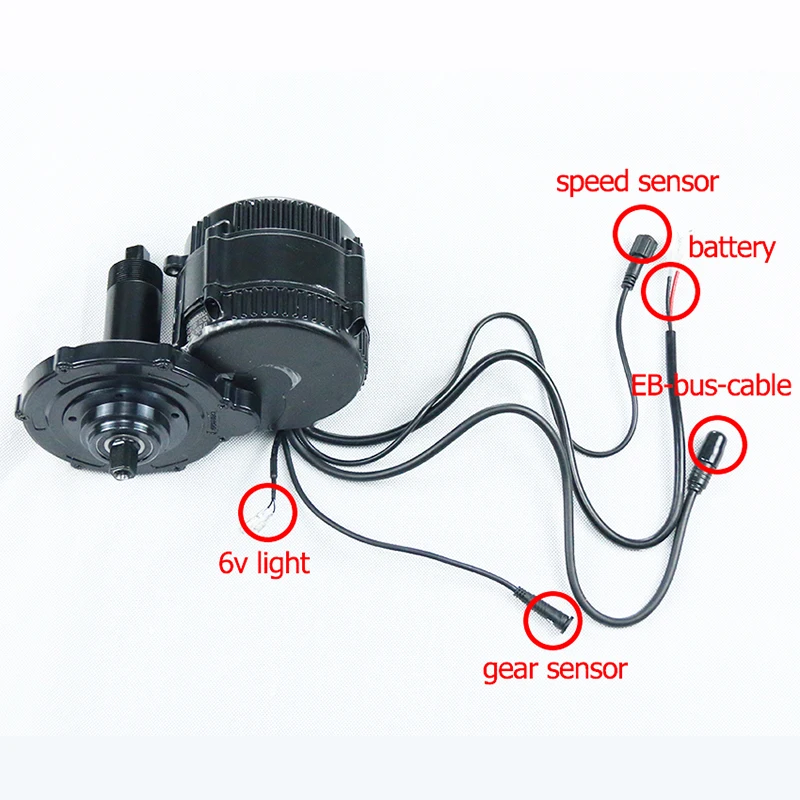

Note: 1.If your country is Norway, please send your address and zip code to check if there is battery service to your city before you order this e-bike conversion kit with battery. 2. Battery and motor will send separately and you will receive 2 parcels, we will give you 2 tracking numbers too! 3. According to different country and region, battery parcel will delay 7-15 days to arrive. #Tips: *Our motor mainly uses DHL transportation, and some countries use DPD transportation; the main battery transportation is UPS. *If your area is in a remote area, we will charge you a certain amount of remote service fees. * If your address is in an island, please contact us before order, so that we can check whether we can arrange shipping to you. #solution: *You can pay the postage for free, but the amount is relatively large, it is more expensive. * Do you have relatives or friends living in a distant city? (We can send it to him for free, then ask him to send the goods to you. That would be a good choice) Introduction: With an integrated speed sensor, this mid-drive motor, which is compatible with a 68mm bottom bracket, has a rated power of 500W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. Packing List: 1. Bafang mid drive motor 48V 500W 2. Chain Wheel ( The default is 46T, leave us message if you need 44T, 48T or 52T ) 3. Chain Cover 4. C965/DPC-18 Display 5. Crank 6. Thumb Throttle 7. 1 to 4 Cables 8. Speed Sensor & Magnets 9. Brake Lever 10. Nuts 11. 48V/52V 13AH/16AH/17.5AH Battery
